ReaFruit MIDI Editor

An FL Studio-style piano roll that runs inside REAPER. This manual covers the editor window, its tools, menus and keys. The Reference page covers scripting, the MCP server and the files ReaFruit writes.

Introduction #

ReaFruit is a REAPER extension. It draws a piano roll in the style of FL Studio and edits REAPER's own MIDI items, so every change is a normal REAPER edit with undo, project files and routing untouched. The editor is free. The only paid part is a license for the built-in MCP server, which lets an AI client edit notes.

Each section of this manual says what a feature does and how to reach it: the menu path, the key, the mouse gesture. Keys are the defaults; every one can be rebound, and every mouse gesture can be remapped. Press F1 inside the editor to open this manual at the section for whatever the mouse is over.

Install #

Requirements #

• REAPER 6.44 or newer. 7.x is recommended; the split clock for high frame rates needs 7.28.
• ReaImGui 0.10 or newer, installed through ReaPack (Extensions › ReaPack › Browse packages).
• Windows x64, macOS (Apple Silicon and Intel) or Linux x64.

First open #

Download the latest version from the Gumroad page, then copy the extension into REAPER's UserPlugins folder and restart REAPER.

On load, the extension writes its scripting helper and example scripts to Scripts/ReaFruit in the REAPER resource folder, and registers its actions. Select a MIDI item and run ReaFruit MIDI Editor: Open/toggle editor from the Actions window.

Updates #

Once a day, when the editor opens, ReaFruit reads the public product page and compares versions. A newer version opens a small window: Download opens the download page, Skip this version stays quiet until the next one, Not now asks again tomorrow, Turn off update checks stops the check. Nothing but a plain page request leaves your computer.

• › Advanced › Check for updates (daily, when the editor opens) switches the check on or off.
• › Advanced › Check for updates now runs it on demand and reports "You have the latest version" or the reason a check failed.

Open the editor #

The three actions #

All three live in REAPER's main action section, so they can take a key, a toolbar button or a mouse modifier.

The editor follows the selection: pick another MIDI item and the view switches to it. With track-level clips on, every MIDI item on the same track shows as a clip, and notes can be edited across them. The toolbar's right end names the clip in view; it turns orange with "No MIDI take" when nothing is open.

Floating, docked, scaled #

• The editor opens as a floating window. Drag it into REAPER's docker like any other window. › View › Prevent docking keeps it floating.
• Shift + drag a window corner scales the view with the window: the same bars and pitches, larger or smaller. A plain corner drag shows more or less of the roll.
• Esc closes the editor when there is nothing to cancel: no drag, no open menu, no selection, no box session.
• The window remembers its size and position; the first open is 1150 × 680.

The help key #

F1 opens this manual in your browser at the section for the item under the mouse: a toolbar button, the lane, an open submenu, a window. › Manual opens the first page. The key is the action Open the manual for the item under the mouse in the ReaFruit MIDI Editor section, so it can be rebound like any other.

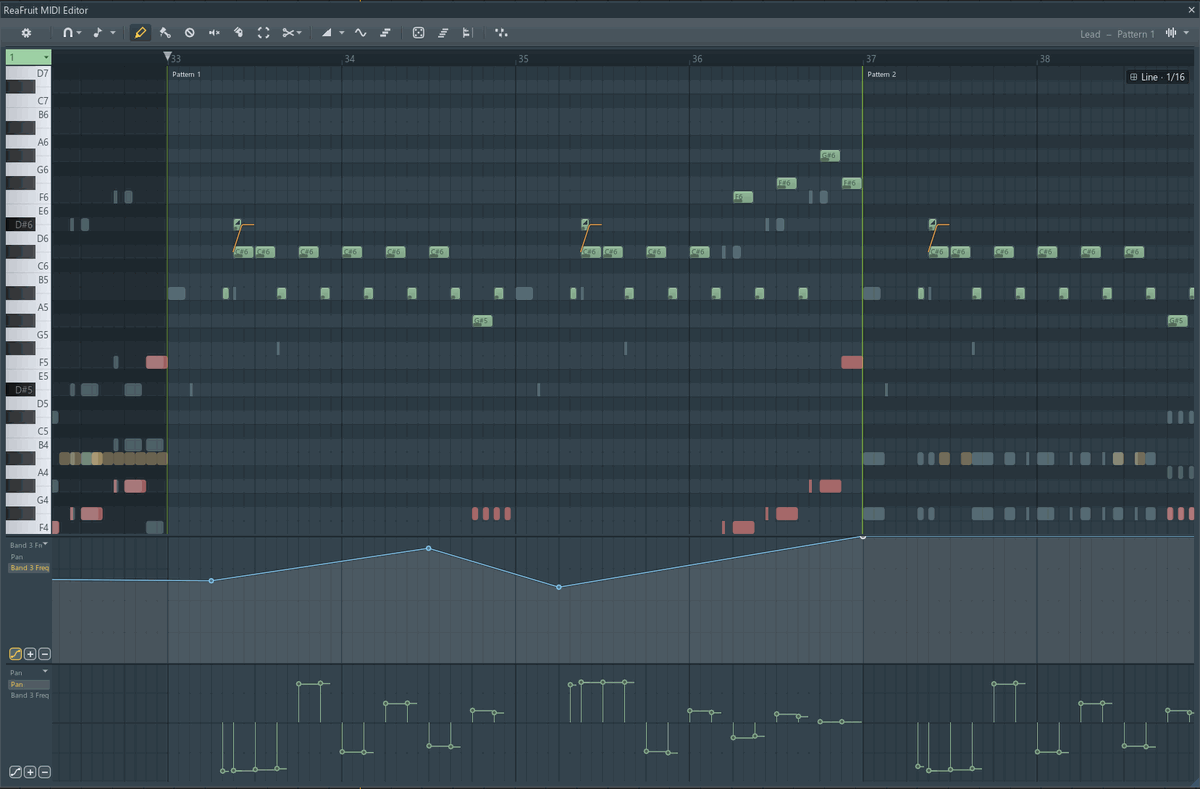

The editor window #

Layout #

1. Toolbar. The gear menu, snap and scale, the six tools, the note modes and the box sessions. See Toolbar.
2. Ruler. Bar numbers that follow REAPER's ruler, the loop section in red, the playhead, and the flag lane for tempo changes when it is switched on.
3. Corner cell. The note colour and articulation selector. See Colours and articulations.
4. Piano keys. Preview, select by pitch, rename. A note-name strip appears when the track has note names.
5. Note grid. Notes, ghost notes, clip bands, chord names, the bass threshold line and the snap badge in the top right corner. Parameter boxes appear in the bottom right.
6. Splitter. Drag to resize the lane; drag it shut and a thin grab bar remains.
7. Lane stack. Velocity by default. Up to four lanes, each with its own control. See Lanes.
8. Target name. The clip in view.

Files dropped anywhere on the window import: see Drag and drop.

Piano keys #

In Sheet Music Mode the column widens to show clefs, the key signature and the meter.

Waveform background #

The Waveform button at the toolbar's right end draws an audio track's silhouette behind the notes, for transcribing by eye. Its arrow picks the track and adds a Pitch line, the detected pitch drawn over the keys. The same switches sit under › View › Waveform. For an automatic transcription see Audio to MIDI.

Navigation #

There are no scrollbars or zoom buttons. The view moves with the mouse and the keyboard.

• › View › Smooth scrolling animates view changes.
• › View › Frame rate runs the editor at 60 to 180 fps instead of REAPER's default of about 30.

Toolbar #

Hover any item for a one-line tip showing its current key. Items that open a menu carry a small arrow.

Items #

In Sheet Music Mode the roll-only items step aside and the tool slot becomes the note-entry strip.

Customising #

• › Toolbar lists every item with a check mark; untick to hide. Right-clicking the empty part of the strip shows the same rows. A hidden item's key still works, unless Disable shortcuts of hidden items at the bottom of the same menu is on: then the keys of items off the strip, hidden here or left out of a mirrored layout, do nothing, and the Shortcuts window marks them.
• › Toolbar › Layout switches from the built-in strip to a mirror of one of REAPER's floating toolbars. Arrange that toolbar in REAPER's Customize menus/toolbars dialog and the strip follows, REAPER commands included. Every ReaFruit item is also a REAPER action named ReaFruit MIDI Editor: …, so REAPER's own toolbars and bindings can drive them.

Tools and modes #

A tool decides what a plain click and drag do on the grid. A mode changes what a drawn note is (a slide, a vibrato, a chord) or adds a way of selecting. Modes stay on across tool changes.

The six tools #

Pick a tool on the toolbar or with its key. The table shows the default gestures; Alt makes any move, clone, insert or resize ignore the snap grid.

Gestures in every tool #

Chord stamp #

Alt+T or the toolbar button. While the stamp is on, Draw and Paint place whole chords: the clicked pitch is the root. Its parameter boxes set the Chord type, Added notes, the Inversion (Auto, or a fixed number up or down) and a Bass note one or more octaves below. The power button on the boxes silences the stamp while they stay open; any edit switches it back on. Over empty grid, Ctrl+Alt + wheel changes the chord type and Alt + wheel the inversion. The snap badge in the grid's corner shows the stamp's state.

Magic lasso #

FL Studio's invisible lasso: with no button held, move the mouse in a loop around notes and they are selected when the loop closes. It is off by default. › Edit › Magic lasso (notes) turns it on for the grid, Magic lasso (velocity lane) for the lane's handles. Hold L to see the path; while L is held the lasso works even with the options off. Shift adds the circled notes to the selection.

Pattern mode #

Hold ` (the key left of 1). Every clip becomes a handle wearing its name; drag the handles to move clips. Release the key to return to notes.

Bass threshold line #

Alt+B or › View › Bass threshold line draws a horizontal line across the grid labelled with its pitch. Notes below the line count as bass notes: when chords are named, a note under the line is the bass of a slash chord rather than a chord tone. Drag the line to move it. Double-click it to turn it off.

Notes #

Editing notes #

• Add. Click empty grid with Draw or Paint. New notes take the length, colour and velocity of the last note clicked.
• Move, resize, clone. Drag the note, its edge, or Shift + drag for a copy. Alt ignores the snap.
• Delete. Delete or Backspace removes the selection; right-click removes one note.
• Select. Ctrl+A all, Ctrl+D none, Esc clears. Shift+C selects every note of the current colour.
• Clipboard. Ctrl+C, Ctrl+X, Ctrl+V pastes at the playhead. Ctrl+B duplicates the selection right after itself. Per-note lane values travel with the notes.
• Transpose and nudge. Shift+↑/↓ a semitone, Ctrl+↑/↓ an octave, Shift+←/→ one grid step.
• Recolour. Alt+C paints the selection with the current colour.
• Undo. Ctrl+Z and Ctrl+Y are REAPER's undo and redo; every edit is one step.

Deleted notes fade out and new ones ring; › View › Note animations turns that off.

Colours and articulations #

Every note has one of 16 colours, as in FL Studio. The corner cell above the piano keys shows the current colour's number and the articulation mapped to it.

• Click the cell for the 4 × 4 colour grid. Alt + wheel over empty grid steps through the colours.
• Right-click it for the articulation map menu. A map assigns an articulation to each colour: a .txt map from Data\ReaFruit Articulations or a bank from a .reabank file under Data. With a map active, ReaFruit writes the keyswitch for a note's colour just before the note, and Label articulation changes prints the name on the grid where the articulation changes. The same menu sits under › Tools › Articulation.
• Ctrl + click opens Articulations on the staff, which gives each colour a symbol in Sheet Music Mode.

The map submenu also holds the Instrument X link.

Chords #

• Select two or more notes that sound together and the chord's name appears above them. Notes under the bass threshold line name the slash bass.
• › Edit › Preview chords while dragging (on by default) plays the chord under a moving note.
• The chord stamp draws chords; Legato with slides connects chord changes with slides; Strum rolls them.

Slides and vibrato #

Both are drawn as notes and written to the MIDI as pitch bend. S and V switch the modes; only one can be on. With › View › Slide/vibrato curves on, the grid draws the bend each one makes.

• Slide. In Slide mode a drawn note is a slide: the sounding note bends to the slide's pitch over the slide's length. The curve's tension is set with Shift+Alt + wheel over the note, or in the Tension box that appears while slide notes are selected. A slide downward mirrors the curve.
• Vibrato. In Vibrato mode a drawn note is a vibrato on the note under it: its interval is the depth, its length the ramp-up time, its velocity the rate. Selected vibrato notes show Rate, Scale and Tension boxes; Ctrl+Alt + wheel scales the depth.
• Bend range and MPE. The Slide button's arrow sets the bend range for this clip (±1 to ±48 semitones, which the instrument must match), switches MPE on for this track so each note bends on its own channel, and sets whether new tracks get MPE. The tuning submenu sets A4 (415 to 465 Hz), for this clip or the whole project.

Ghost notes #

Other tracks' notes show dimmed behind the clip's own. Alt+V or › View › Ghost notes toggles them; Ghost notes use track colors tints them per track; Ghostable (this clip) decides whether the current clip shows as a ghost in other editors. Double right-click a ghost note to jump to its clip; where ghosts overlap, a list asks which one. Chop can cut notes to a ghost track's rhythm.

Clips #

With › View › Track-level clips on (the default), every MIDI item on the track is a clip in the same view. The grid dims outside the current clip, and each clip has a band with its name. Edits can span clips.

Per-note lane values stay with their notes when clips move or copy; › Advanced › Background helper does that work between frames.

Snap and scale #

• Snap is the toolbar's first menu: Line follows the visible grid as you zoom; the others are fixed fractions of a step (a 16th), a beat, or a bar. The badge in the grid's top right corner shows the current snap. Alt while dragging ignores it. Ctrl+Q pulls the selected notes' starts onto the grid.
• Scale lock (the Scale icon) keeps drawn and moved notes on the chosen scale and dims the keys outside it. The arrow picks the root and one of Major, Minor, Harmonic minor, Melodic minor, Dorian, Phrygian, Lydian, Mixolydian, Locrian, Major pentatonic, Minor pentatonic and Blues; Detected rows offer the scales that fit the clip's notes; ReaScale lists REAPER's scale files; Flat note names spells D♭ instead of C♯. Holding Alt in the menu shows each mode's equivalent root. The scale is saved with the project.

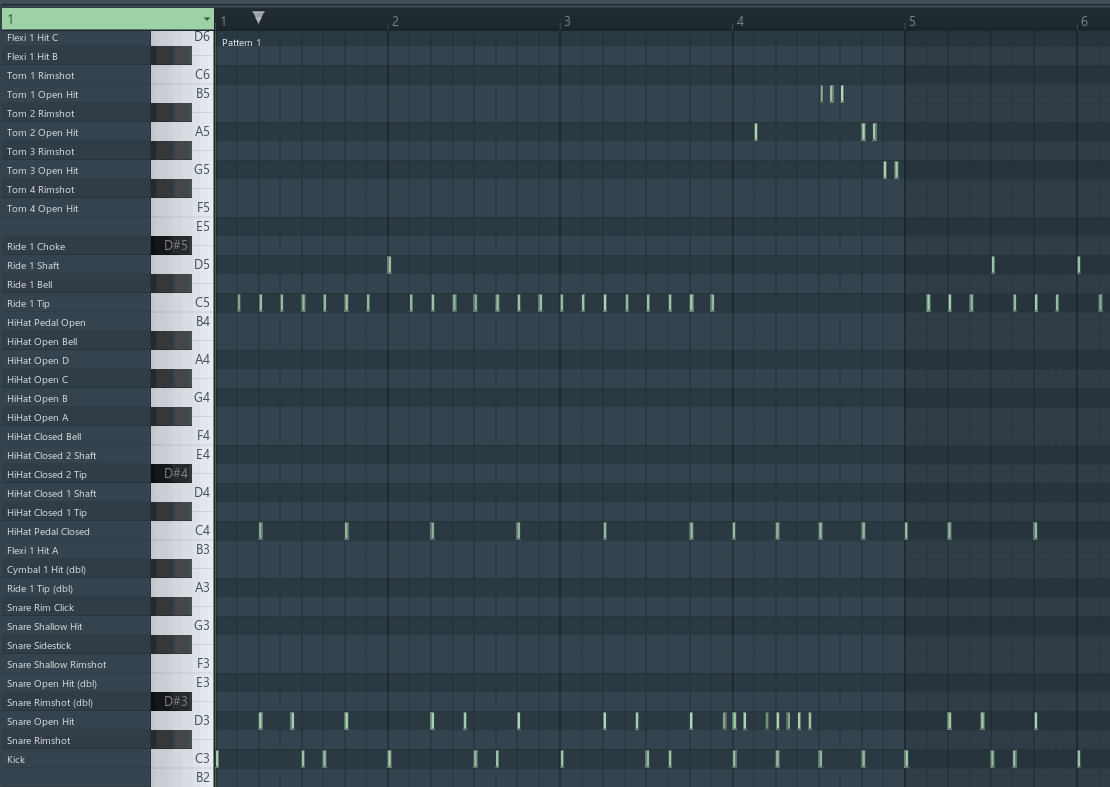

Note names #

› Tools › Note names loads a note-name map onto the track, the same names REAPER's MIDI editor shows: the maps in MIDINoteNames in the resource folder, Load from file…, Save to file…, Rename note… and Clear note names. Right-clicking a piano key renames that key. With names present, the key column grows a strip that shows them; drum maps read as pads.

Ruler and tempo #

The ruler #

Bar numbers follow REAPER's ruler, including a project that starts at a bar other than 1. The loop section shows as a red band.

Tempo change markers #

› View › Show tempo change markers (off by default) adds a lane under the bar numbers with the project's tempo map, FL style: a stem and an amber tag at each change showing the BPM, and the meter where it changes. Guide lines run down the grid from each flag. The playhead and the grid follow the tempo map either way.

• Click a tag to edit it in two parameter boxes: Tempo (BPM, three decimals) and Ramp (a gradual change to the next marker). Enter keeps, Esc cancels.
• Drag a tag to move the change. The project's opening marker stays where it is.
• Ctrl + double-click the ruler to add a change there. › Edit › Tempo change at cursor… adds or edits the one at the edit cursor.
• Right-click a tag: Edit, Delete, or Edit tempo in the automation lane. Right-click an empty part of the lane: Add tempo change here.
• The lane menu's Project › Tempo shows the whole map as points in the lane, one per change, where ramps and steps can be shaped.

Lanes #

The lane under the grid edits one control at a time: note velocities, per-note swing, a plugin parameter, a track envelope, a MIDI CC, or the tempo map. A lane works in one of two ways. Value mode draws one handle per note. Points mode draws a free envelope.

The lane stack #

• Drag the splitter above a lane to resize it; drag it shut and a thin grab bar remains to reopen it.
• The label column's corner buttons: the curve icon switches Edit as points, + adds a lane below, − removes this lane. Up to four lanes stack, each with its own control, mode and height, remembered per track.
• The column also lists the track's automated controls; click one to show it in this lane.
• A lock on the label marks a lane the editor writes itself, such as the pitch bend under slides.

The lane menu #

Click the lane's label.

Value mode #

One handle per note. For a plugin or envelope control this is per-note automation: the value the control takes when the note plays, which travels with the note when it moves or is copied.

Points mode #

A free envelope, automation-clip style. Right-click adds a point; drag a segment to bend it.

Point menu (right-click a point): the segment shape into the point (Linear, Square, Slow start or end, Fast start, Fast end, Bezier); Delete point or the selected points; with several selected, Flip values, Mirror values within their range, Reverse in time, Space evenly; and a Value field that accepts dB, %, L/R or the control's own units.

Shapes #

lane menu › Shapes lists the shapes saved in Data\ReaFruit Shapes. Pick one and the pointer carries it: click places it (Alt ignores the snap), drag scales or warps it before it lands, the wheel sets its width in grid cells (Alt: tenths; Ctrl: double or halve), right-drag opens the palette. Save selection as shape… stores the selected points as a new one. Point tool returns to plain editing.

Parameter boxes #

How they work #

Parameter boxes appear in the grid's bottom right corner, up to nine in a row, whenever a feature has settings to show: a tool session, the chord stamp, the arpeggiator, an import, a script.

• Change a value by dragging the box, Shift for fine steps, or by rolling the wheel over it. Hold the box's number key 1 to 9 and roll the wheel from anywhere on the roll.
• Double-click resets a box. Right-click lists its options or lets you type a value within its range.
• Sessions (Humanize, Strum, Quantize, Time warp, the imports, scripts) preview live. Enter, the ✓ or a click on the roll keeps the result as one undo step; Esc or the ✗ puts everything back.
• Persistent sets (chord stamp, arpeggiator, swing) have a power button and a close button; their values are remembered.
• A button box runs on a press of its key: 1 the next arpeggiator pattern, 2 the next Quantize durations mode, 3 a new Humanize seed.
• › View › Parameter boxes draws them at 1×, 1.25× or 1.5×.

Humanize #

Alt+H. Randomises the selected notes. Timing is the largest shift of a start; the second box is the largest change of the lane's current value (velocity by default); Seed is a die: press it, or 3, for a new throw.

Strum #

Alt+S. Rolls each selected chord. Timing spreads the chord's notes in time and its Tension shapes the spread; Velocity ramps the velocities across the chord with its own Tension.

Quantize #

Alt+Q. Strength moves note starts part or all of the way to the grid; Durations keeps the lengths, snaps the ends, or snaps the lengths (2 cycles it); Grid is a snap size or a groove. Ctrl+Q quantises starts fully with no boxes.

Swing #

Alt+Shift+S. Amount in percent; Type is FL Studio's swing curve or a groove file (.rgt) from Data\Grooves, with files that differ only by a percentage folded into one family; Scope applies it to the whole project, this track, or the selection. The swung positions preview on the roll. › Tools › Swing shows the project's amount as a slider and the groove tree; the Swing lane overrides single notes.

Time warp #

Alt+W. One box bends the selected notes' timing over their span: positive values push the notes toward the end, negative toward the start, the first and last staying put. Preview, then Enter.

Arpeggiator #

Alt+R or › Tools › Arpeggiator. Per clip, its held chords play as a pattern while the notes stay as drawn. Pattern: Up, Down, Up-down, Up-down ending twice, Up and Down converging, Down and Up converging, Xross, Random. Time 1/4 to 1/32, Gate 25 to 100 %, Range 1 to 4 octaves, Repeat 1× to 4×. The power button switches it off; Glue (Ctrl+Enter) writes the pattern into real notes and switches it off.

Legato #

Ctrl+L extends each selected note to the next note's start. Ctrl+Alt+L, Legato with slides, joins chord changes with MPE slides; › Tools › Legato slides chooses whether the first chord holds or each chord is led into.

Chop #

The toolbar's Chop menu cuts the selected notes into pieces: the current snap, a fixed size from 1/2 bar down, or the rhythm of a ghost track. Ctrl+U chops at the current snap without the menu.

Glue #

Ctrl+G merges selected notes of the same pitch that touch or overlap into one note. With clips selected, it merges the clips.

Sheet Music Mode #

Tab shows the clip as notation on a grand staff and lets you enter and edit notes MuseScore-style. The same MIDI is edited either way; voices, accidentals, stems, slurs and tuplets are stored as REAPER notation events, so REAPER's own notation editor sees them too.

The view #

• The key column widens to show the clefs, the key signature and the meter. The ruler, the corner cell and the playhead stay.
• The lane becomes the dynamics row; a band above the treble staff holds playing techniques.
• Triplets are detected from the note timing. Notes of other clips and tracks show as ghosts as on the roll.
• › View › Sheet music holds the mode switch and three options: Grand staff for other instruments (a grand staff for every instrument, not only piano), Engrave 64th notes (adds the 64th to the durations), Extend clip while entering (the clip grows as you enter past its end).

Note input #

In Sheet Music Mode the toolbar's tool slot becomes the note-entry strip. N or its first button places the input caret on the staff. Pick a duration, then type pitches.

With the transport stopped, notes played on a MIDI keyboard enter at the caret too.

Editing on the staff #

• Click a notehead to select it, Shift to toggle, Ctrl + drag for a marquee. Delete removes the selection.
• Drag a notehead up or down to change its pitch by staff steps; Alt moves in semitones.
• X flips stems, S slurs the selection, Shift+S / V / N / O add staccato, accent, tenuto and marcato. The strip's flat, natural and sharp buttons alter the selection; press again to undo.
• The roll's clipboard, transpose and undo keys work here as well.

Dynamics and techniques #

Click the dynamics row under the staves to set a dynamic from that point: pp, p, mp, mf, f or ff. Click the band above the treble staff to set a technique from that point. Both are written to the MIDI and exported to MusicXML.

Articulations on the staff #

With an articulation map active, this window gives each colour slot a staff symbol. Open it from › Tools › Articulation › Articulations on the staff… or with Ctrl + click on the corner cell. Each row shows the colour slot, its switch, the staff symbol to draw, whether it applies to the note or to a span, and a label. Apply & save writes the choices into the map, Revert drops them, Map order sorts the rows as the map lists them.

Import and export #

Drag and drop #

Drop a file anywhere on the editor: a MIDI file (.mid, .midi), a MusicXML score (.mxl, .musicxml, .xml), an FL Studio score (.fsc) or an audio file (.wav, .mp3, .flac and the other formats REAPER reads). The same imports sit under › File.

MIDI files #

• › File › Import MIDI file (.mid)… loads a file into the open clip. A file with several note tracks first asks for the Track in a parameter box: all of them, or one by name. A Tempo box then shows the tempo the file was written at; the notes are placed against it so bars line up, and you can adjust it before keeping.
• › File › Export MIDI file (.mid)… writes the clip as a MIDI file.

MusicXML #

• Import. A score with several parts asks which to load: all parts, one channel each, or a single part. › File › MusicXML import options: Import tempo and time signature and Rename track on part import, both on by default.
• Export the clip. › File › Export MusicXML (.musicxml)…
• Export tracks. › File › Export selected tracks as MusicXML… writes one score with a part per track, or one file per track, optionally only the time selection.
• Export options (the submenu and the export dialog): Piano layout splits the music onto two staves by hand and voice and picks the clefs; Leave out slurs; Leave out dynamics; Drop duplicate notes (on by default) removes notes doubled at the same pitch and time.

FL Studio score #

› File › Import FL Studio score (.fsc)… loads a score saved from FL Studio's piano roll, note colours included.

Audio to MIDI #

› File › Import audio as MIDI… transcribes an audio file into the clip. A popup shows the analysis with a Cancel button; then the result previews with these boxes:

› File › Quantize after audio import snaps the result. The waveform background shows the source for comparison.

Hookpad #

Copy chords and melody in Hookpad, then press Ctrl+V in the editor: they paste as notes at the playhead. The editor's own clipboard is used when there is nothing from Hookpad.

Gear menu #

The gear button at the toolbar's left end opens the menu. Rows with a check mark are switches; a right-click applies a row without closing the menu. Keys shown are the defaults.

File #

Edit #

Tools #

View #

Toolbar #

Scripts #

Advanced #

Bottom rows #

Mouse modifiers #

Every mouse gesture in the editor is a cell in a table: a context (what is under the pointer), an action (which button, click or drag) and a modifier combination pick a behaviour. The tables below are the defaults; the window changes them.

The window #

› Mouse modifiers, or the button in the Shortcuts window.

• Context picks one of sixteen: Note, Note edge, Piano roll, Selection stretch handle, Clip edge, Clip label, Ruler, Piano keys, Value lane, Automation point, Automation segment, Automation lane, Shape tool, Sheet note, Sheet staff, Magic lasso. The second combo picks the action; a Tool combo appears for the cells that differ per tool.
• The table has one row per modifier set: none, Shift, Ctrl, Shift+Ctrl, Alt, Shift+Alt, Ctrl+Alt, Shift+Ctrl+Alt (Cmd and Option on macOS). Click a row to pick a behaviour from the list; the factory value is marked "(default)". Rows that differ from the default show in amber; right-click one to reset it.
• An empty row inherits: the same row without Alt, then the plain row. On Alt rows the inherited behaviour is the "ignoring snap" variant. "No action" blocks that.
• Reset this table and Reset all to defaults. Changes save at once.

Default tables #

Alt rows are the "ignoring snap" versions of the plain rows unless stated.

Note

Note edge

Left drag: resize (Draw, Paint); Shift clones; Ctrl marquee; the sweeps for Delete, Mute and Slice.

Piano roll (empty grid)

Selection stretch handle, clip edge, clip label

• Handle: left drag stretches; Alt snaps the end.
• Clip edge: left drag trims (Alt no snap); Ctrl marquee; double click glues to the neighbour; Ctrl click deselects all.
• Clip label: left drag moves; Shift drags a pooled copy; Ctrl slips the content; double click renames; right click opens the menu; middle drag pans.

Ruler and piano keys

• Ruler: click seeks, drag scrubs (Alt no snap); double click clears the loop, Ctrl double click adds a tempo change; right drag sets the loop; middle drag pans; wheel scrolls and zooms as on the grid.
• Piano keys: click previews, Ctrl selects the pitch's notes, Shift+Ctrl adds them; drag glides, Ctrl drags a pitch range, Shift+Ctrl adds; right click renames; middle drag pans; wheel scrolls, Ctrl zooms vertically.

Value lane

Automation lane, point and segment (points mode)

Right drags on a point or a segment carry the same five transforms as the lane. Middle drag pans everywhere.

Shape tool, sheet, lasso

• Shape tool: left click places; left drag scales; right drag opens the palette; wheel sets the width (Alt tenths, Ctrl double or halve).
• Sheet note: click grabs, Shift toggles, Ctrl deselects all; drag changes the pitch by steps (Alt semitones), Ctrl marquee, Shift+Ctrl marquee add.
• Sheet staff: click deselects; drag marquees, Shift adds; wheel scrolls sideways, Ctrl zooms, Shift+Ctrl zooms vertically.
• Magic lasso: motion selects the circled notes; Shift adds.

Keyboard shortcuts #

How bindings work #

• Every editor command is a REAPER action in its own Actions-window section, ReaFruit MIDI Editor. Rebind it there like any REAPER action; the editor reads the keymap as it changes. › View Shortcuts lists the bindings as they stand and opens that section.
• A key set in the Actions window wins. Otherwise the file Data/reafruit_keys.ini in the resource folder applies (action = ctrl+shift+key, none to unbind), then the built-in default.
• On macOS, Ctrl in these tables means Cmd.
• Keys marked † are not written into REAPER's keymap because they collide with another default, so the Actions window shows the action as unbound; the key still works in the editor.
• Sheet music keys apply only in Sheet Music Mode, and note-input keys only while the caret is active; inside those layers they win over the roll's keys.

Transport and view #

Selection and clipboard #

Editing #

Tools and modes #

Parameter boxes #

Sheet music #

Sheet note input #

Scripts #

ReaFruit adds a ReaScript API (reaper.ReaFruit_*) that reads and writes the open clip's notes, selection, colours, slides, settings and lanes, and can show its own parameter boxes. The functions are documented on the Reference page; this section covers the menu.

The Scripts menu #

• › Scripts lists the .lua, .eel and .py files in Scripts/ReaFruit in the resource folder, subfolders as submenus. A click runs the script; a script that opens boxes previews live until you keep or cancel.
• Run as native MIDI editor script… runs a script written for REAPER's MIDI editor against the open clip.
• Open scripts folder and Rescan. The helper library reafruit.lua and the examples are written there at load.

Key slots #

› Scripts › Key slots assigns a script to each of eight slots. Each slot is an action, Run script slot N, in the ReaFruit MIDI Editor section, so it can take a key in the Actions window. Slots work with the editor closed too; a script may open it. The Shortcuts window lists the slots with their scripts.

Example scripts #

Instrument X link #

ReaFruit can mirror a track's notes live into Instrument X and read its articulation list. The link lives under › Tools › Articulation › Instrument X link.

1. In Instrument X, run the ReaFruit bridge script (ix_bridge.lua, shipped in the tools folder). The status line in the submenu reports when it is seen.
2. Attach to Instrument X track picks the track there by name; the roster comes from the bridge.
3. Mirror this track to Instrument X switches the live mirror on. Start offset (QN) shifts the notes; Force push and Force pull resend either way.
4. Create articulation map from Instrument X turns its articulation list into a map for the colour slots.

MCP server and license #

The extension contains an MCP server, so an AI client on the same computer can read the project, open the editor, select and edit notes, change settings, and write automation. It is off by default, listens only on localhost, and its tools are listed on the Reference page.

Turning the server on #

• › Advanced › MCP server (LLM access on localhost). MCP port offers 7323 (the default), 7324, 7325, 8765 and 9765; a row reports if the port could not be opened.
• Point the client at http://127.0.0.1:7323/mcp. Setup lines for common clients are on the Reference page.
• Scripts never need the server: ReaFruit_CallTool runs the same tools from ReaScript, free.

The license #

The editor and the scripting API are free. The MCP server's tool calls are the one licensed feature: the first 100 calls are a free trial (status calls do not count), after which a key is needed. A key is a one-time purchase and covers up to five computers.

• › License… opens the window. Paste the key from the receipt e-mail or the download page and press Activate. Re-check verifies again; Deactivate clears the key from this computer but does not free its activation. Buy a license opens the shop.
• A licensed copy re-verifies every three days when it can and keeps working offline for 30 days.
• A month after the first open, an unlicensed copy shows one thank-you note with links to leave a review or buy; it never returns.
• Nothing about your projects leaves the computer; verification sends the key and a machine id.

Glossary #

ReaFruit MIDI Editor v0.9.6-beta · Created by Meistr · Reference
